T75 Big head pump 15L built-in

Products Info

T75 Big head pump 15L built-in
Product Details:

1. Pressure ratio: 60:1

2. Oil outlet pressure: 40-45Mpa

3. Air inlet pressure range: 0.6-0.8Mpa

4. Fuel delivery: 0.85 L/Min

5. Gross weight of equipment: 19.5KG

6. Barrel volume: 40L

7. Package size: 405 * 405 * 870MM

8. Directly built-in 15L canned 1-3 # butter

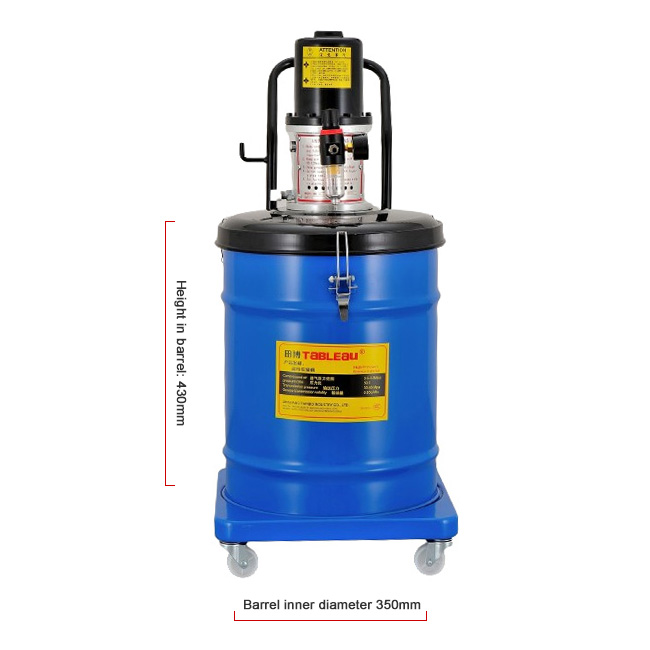

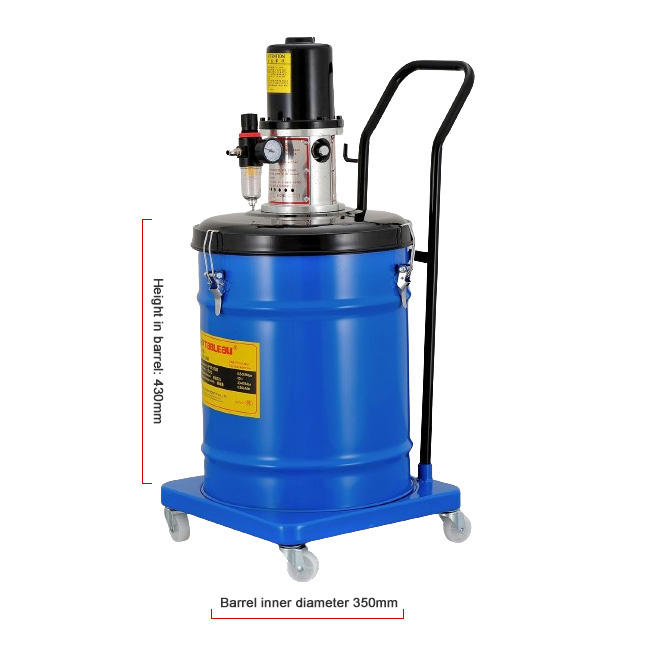

9. The length and height are shown in the figure. Remarks: the inner height of the barrel is 430mm, and the inner diameter of the barrel is 350mm
